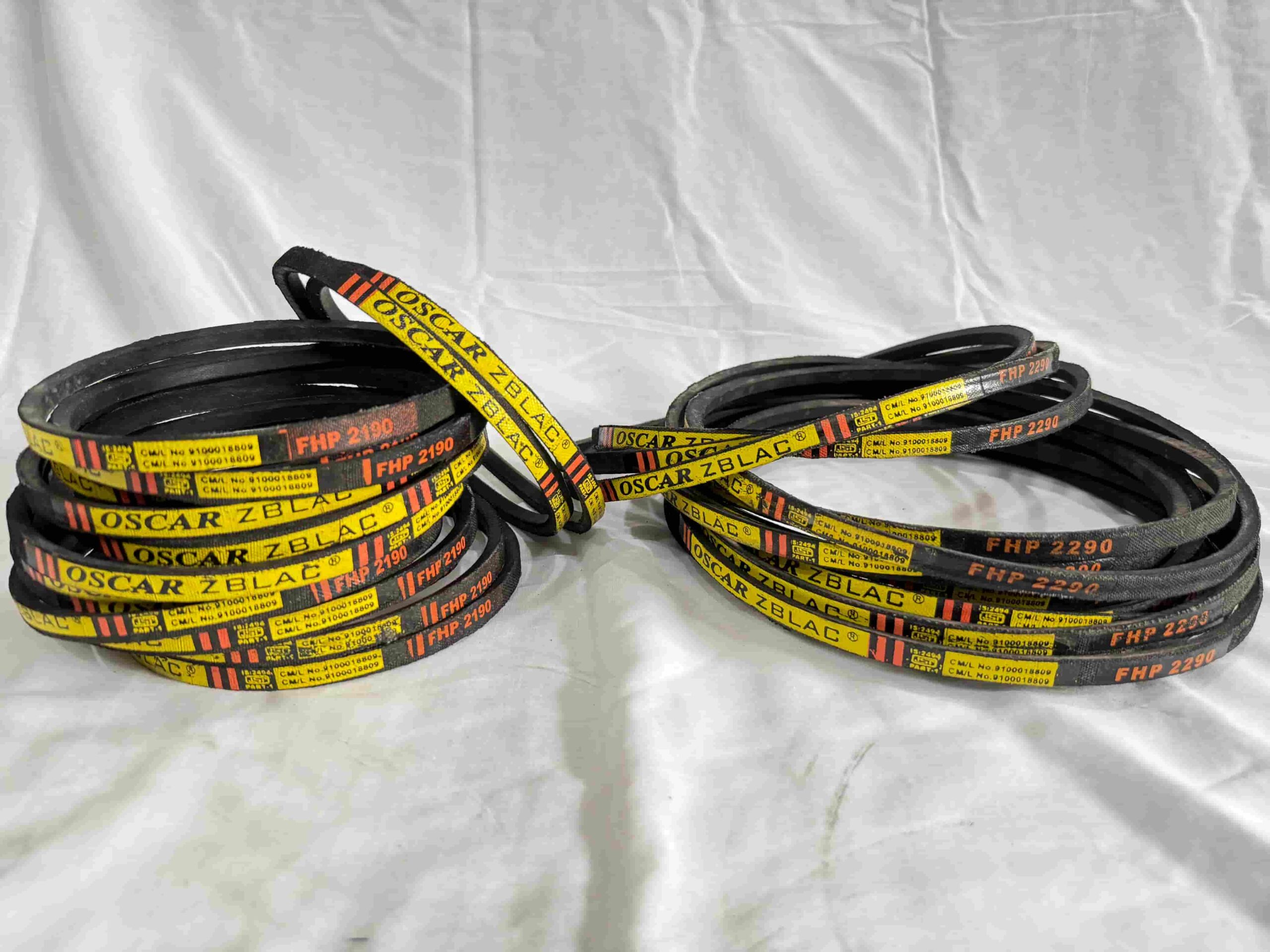

FHP (Factional Horse Power) V-Belt
We are offered in Oscar Zblac V-Belt, KisanGold V-Belt, Tiger V-Belt & Paras V-Belt with ISI Certification.
Introduction of FHP (Factional Horse Power) V-Belt
FHP V-BELTS are designed to transmit power in applications requiring 1 horsepower or less. Their flexible design allows them to operate efficiently on small pulley diameters and at low speeds, making them ideal for home appliances and light-duty machinery.
Key Features:
- Tensile Cords : Low-stretch polyester or aramid cords for strength and flexibility.
- Rubber Base : High-grade synthetic rubber resistant to heat and oil.
- Cover Fabric : Woven cloth for abrasion resistance and enhanced grip.
- Profile : Molded precision profile for better belt-pulley contact.
Standard Sizes & Sections :
FHP V-belts come in standardized cross-sections, typically labeled as:
- 2L Section (6.35 mm top width)
- 3L Section (9.5 mm top width)
- 4L Section (12.7 mm top width)

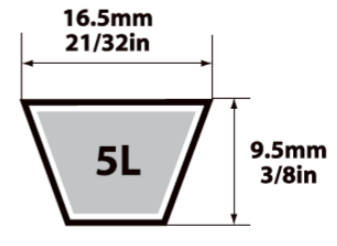

- 5L Section (15.9 mm top width)
Each belt is marked with a specific length code, indicating its inside length (Li), pitch length (Lp), or outside length (La) depending on the manufacturer
Applications:
- Ceiling & Table Fans
- Domestic Washing Machines
- Electric Drills and Bench Grinders
- Treadmills & Gym Equipment
- Paper Shredders & Laminators
- Agriculture Spray Pumps
- Domestic Flour Mills (Low HP)
- Coolers, Blowers, Vacuum Cleaners
Advantages:
- Low-cost replacement
- Easily available in 2L, 3L, 4L, 5L sections
- Compatible with OEM & local motors
- Reduced power loss, increased efficiency
- Extended life with minimal maintenance

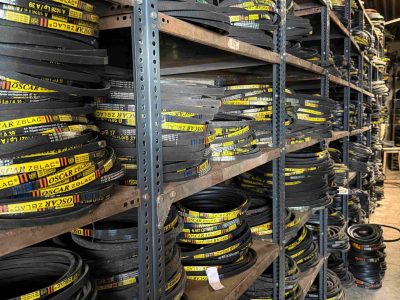

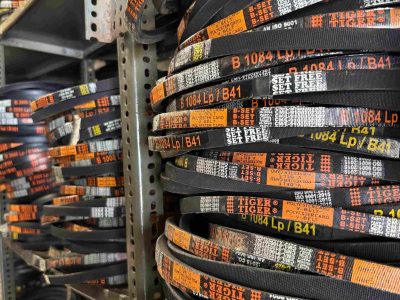

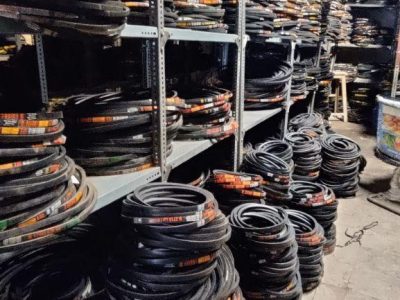

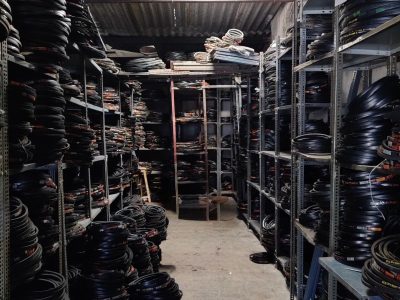

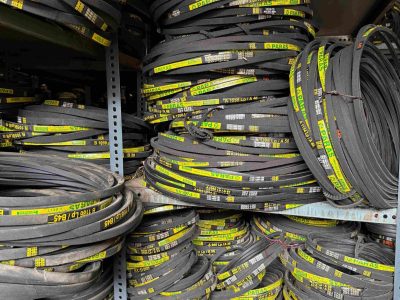

Our Warehouse stock
